Accessory

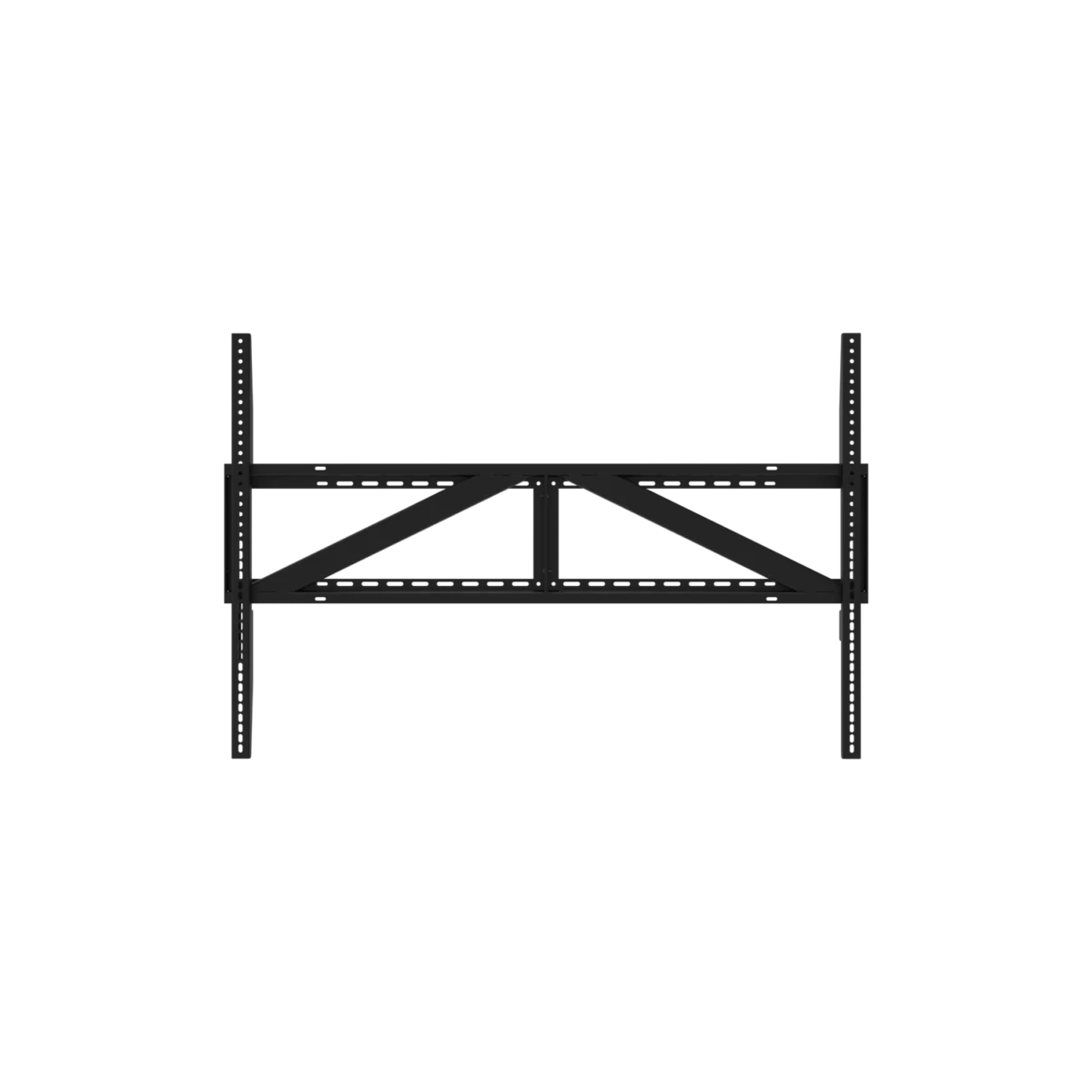

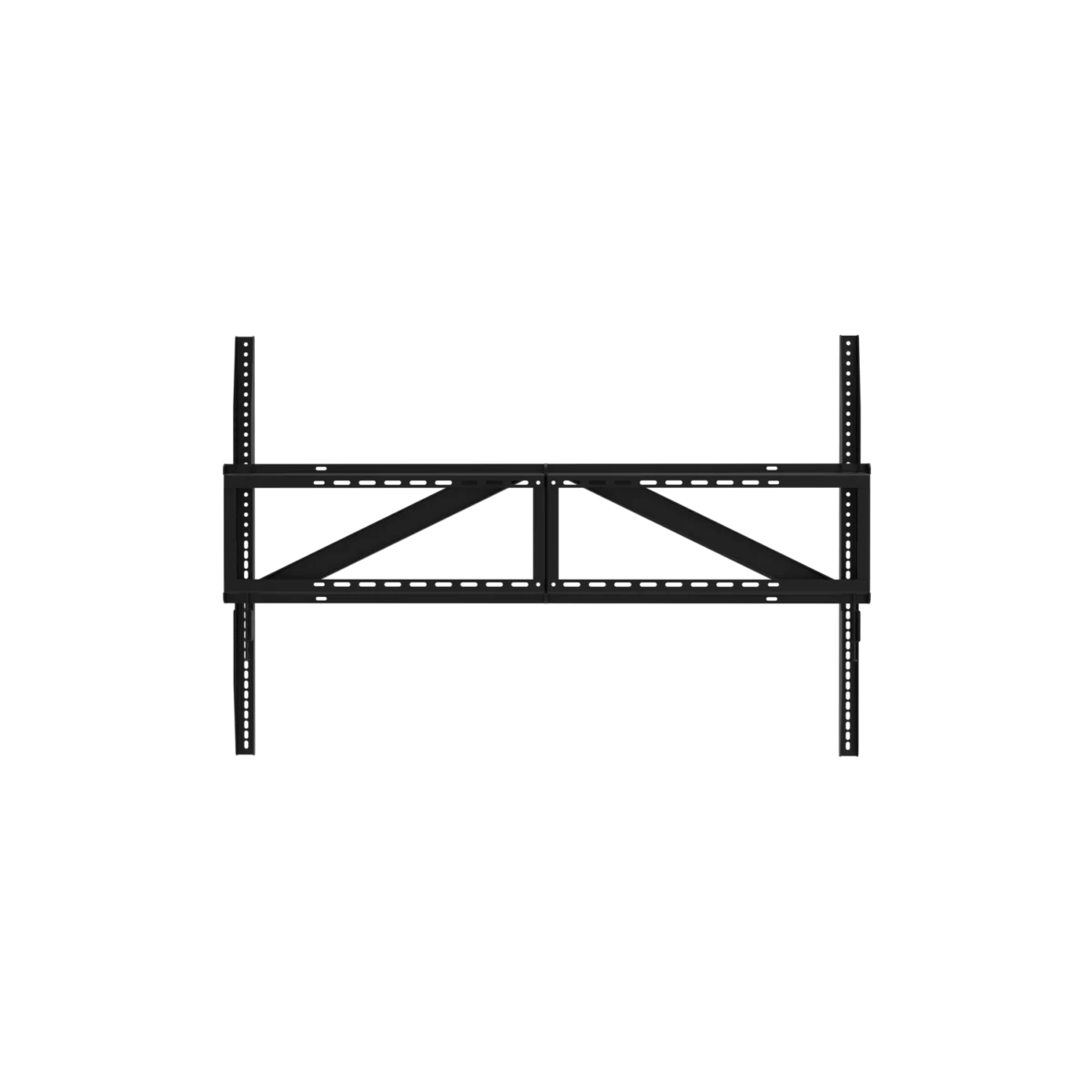

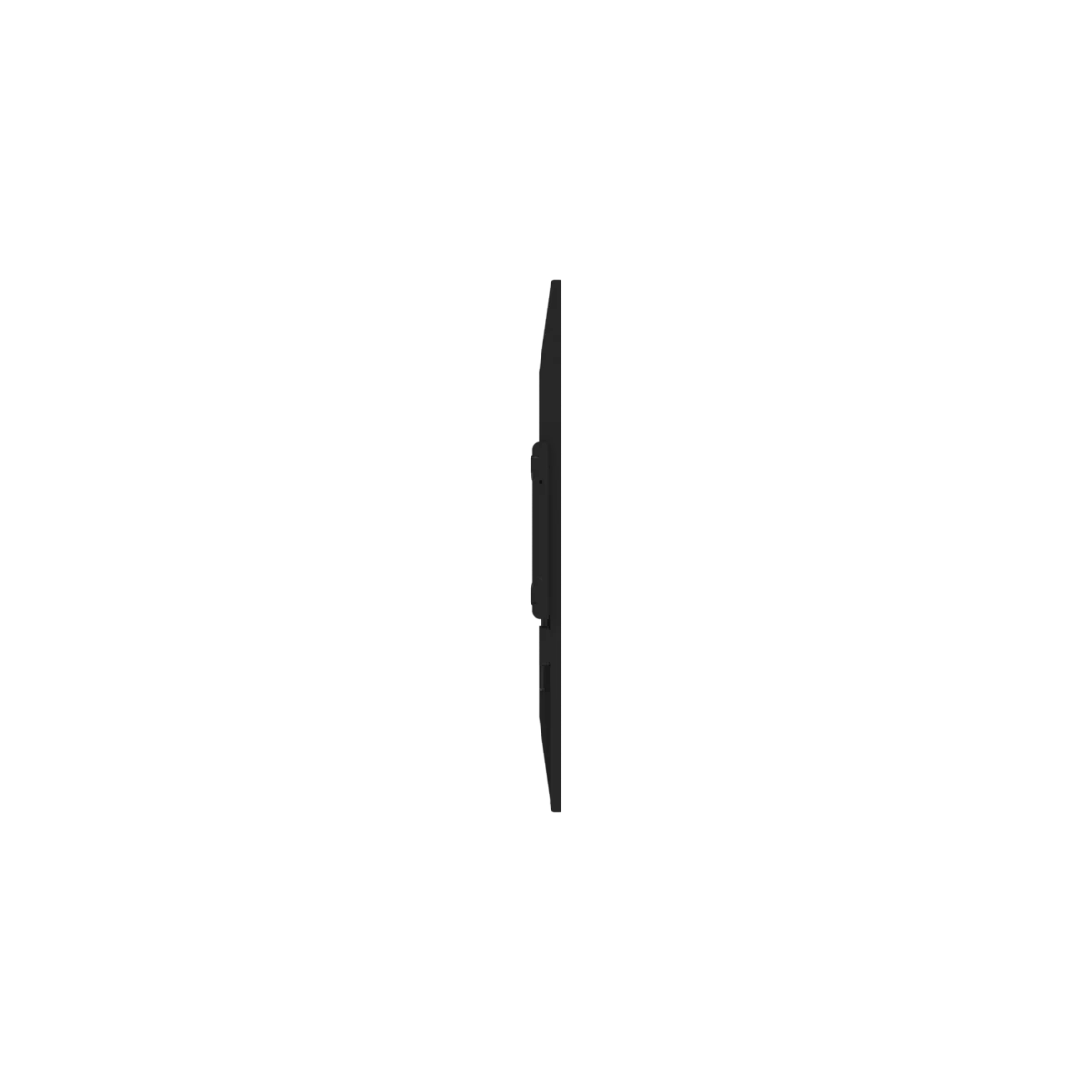

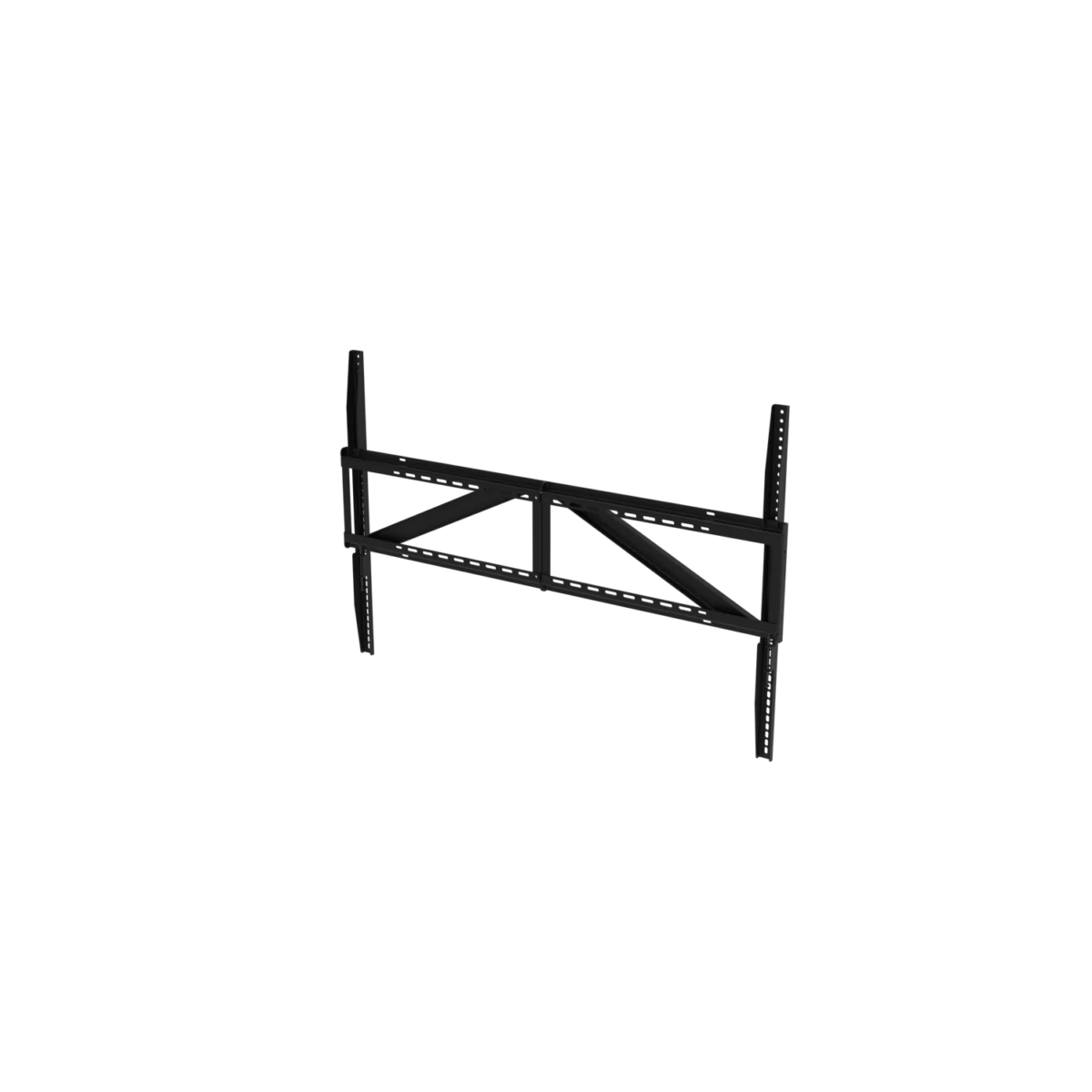

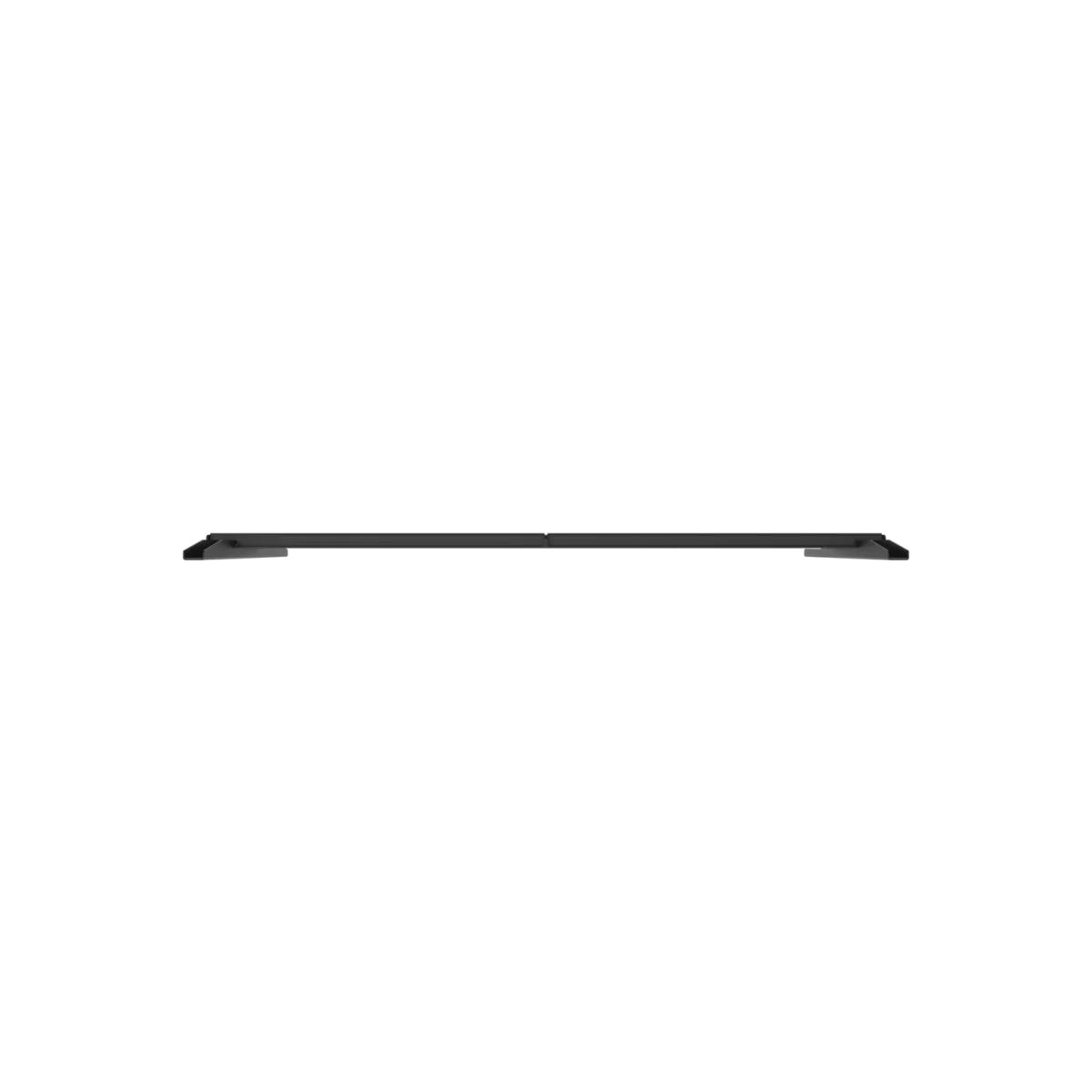

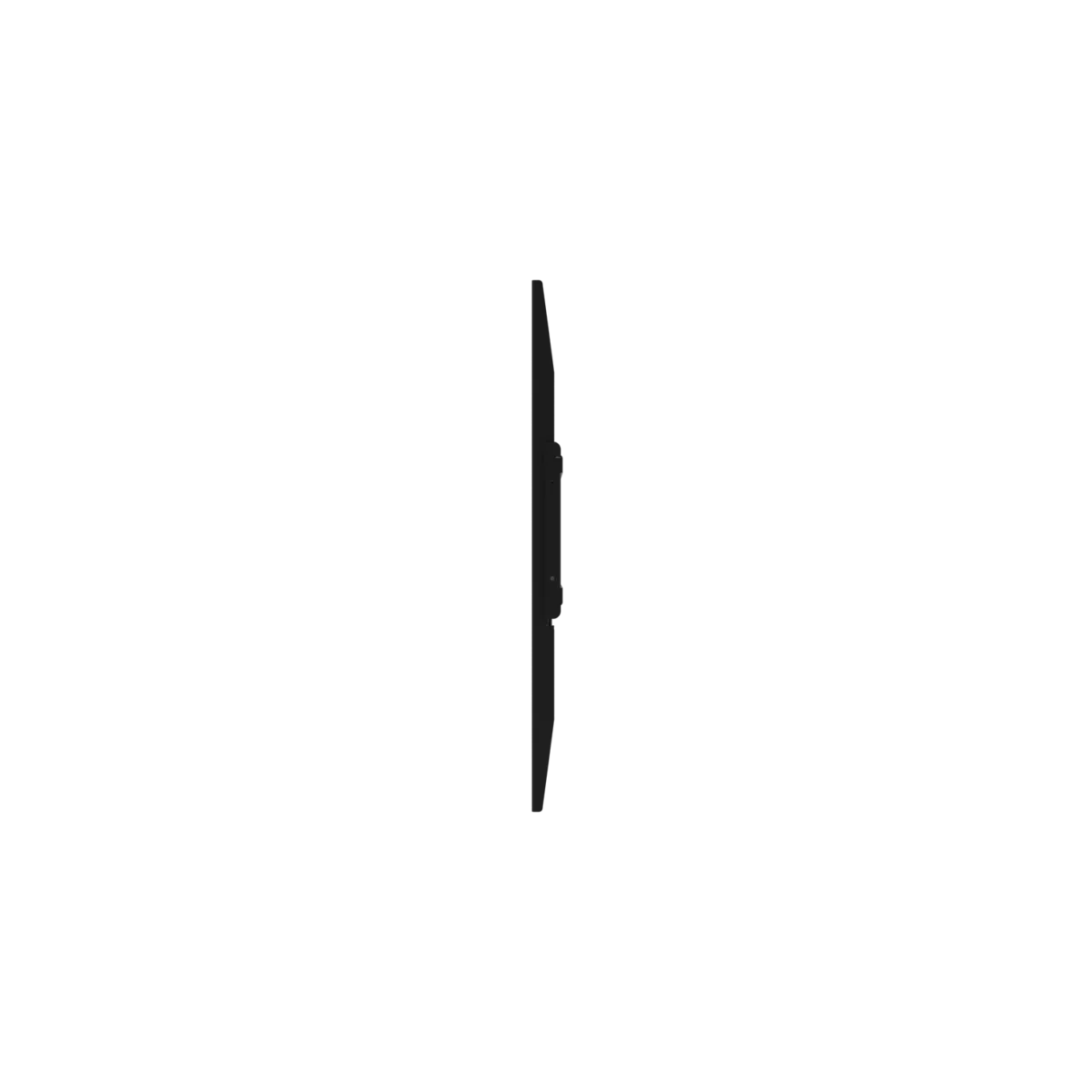

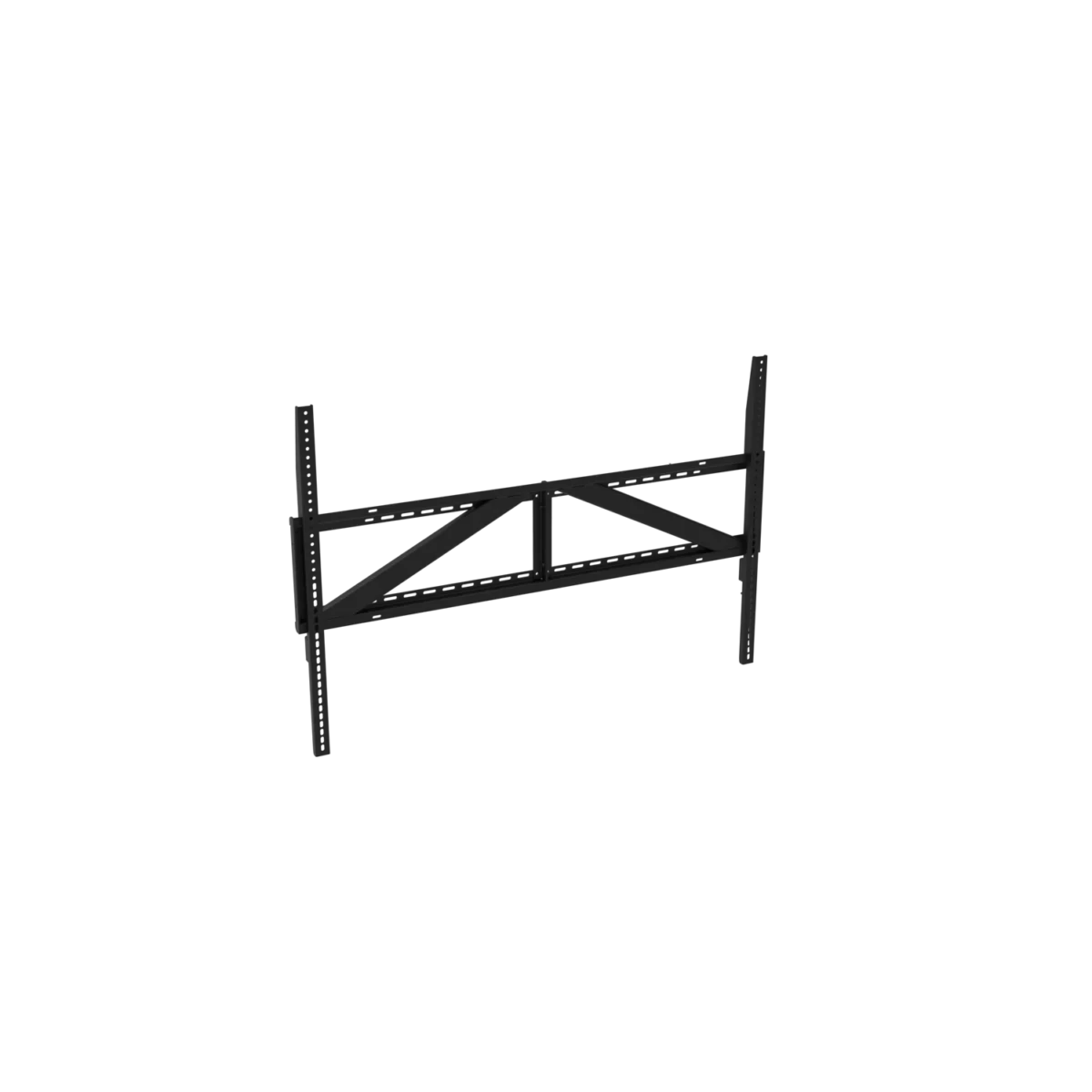

Wide VESA Bracket up to 1200 x 800 mm

For ultra-wide and large panels

The Wide VESA Bracket is the perfect solution for mounting extra-large or ultra-wide interactive displays. Designed to support VESA patterns up to 1200 x 800 mm and displays weighing up to 125 kg / 275 lbs, this bracket is ideal for modern classrooms, boardrooms, and professional AV installations where larger displays are becoming the norm.

Whether you're working with an oversized touchscreen or a wide-format display, the Wide VESA Bracket ensures a safe, secure, and perfectly aligned mounting experience.

To reduce shipping volume and simplify on-site handling, the bracket features a modular two-part frame design. This smart packaging solution supports efficient logistics and faster installation while reducing environmental impact.

Specifications

Material:

Sheetmetal / steel

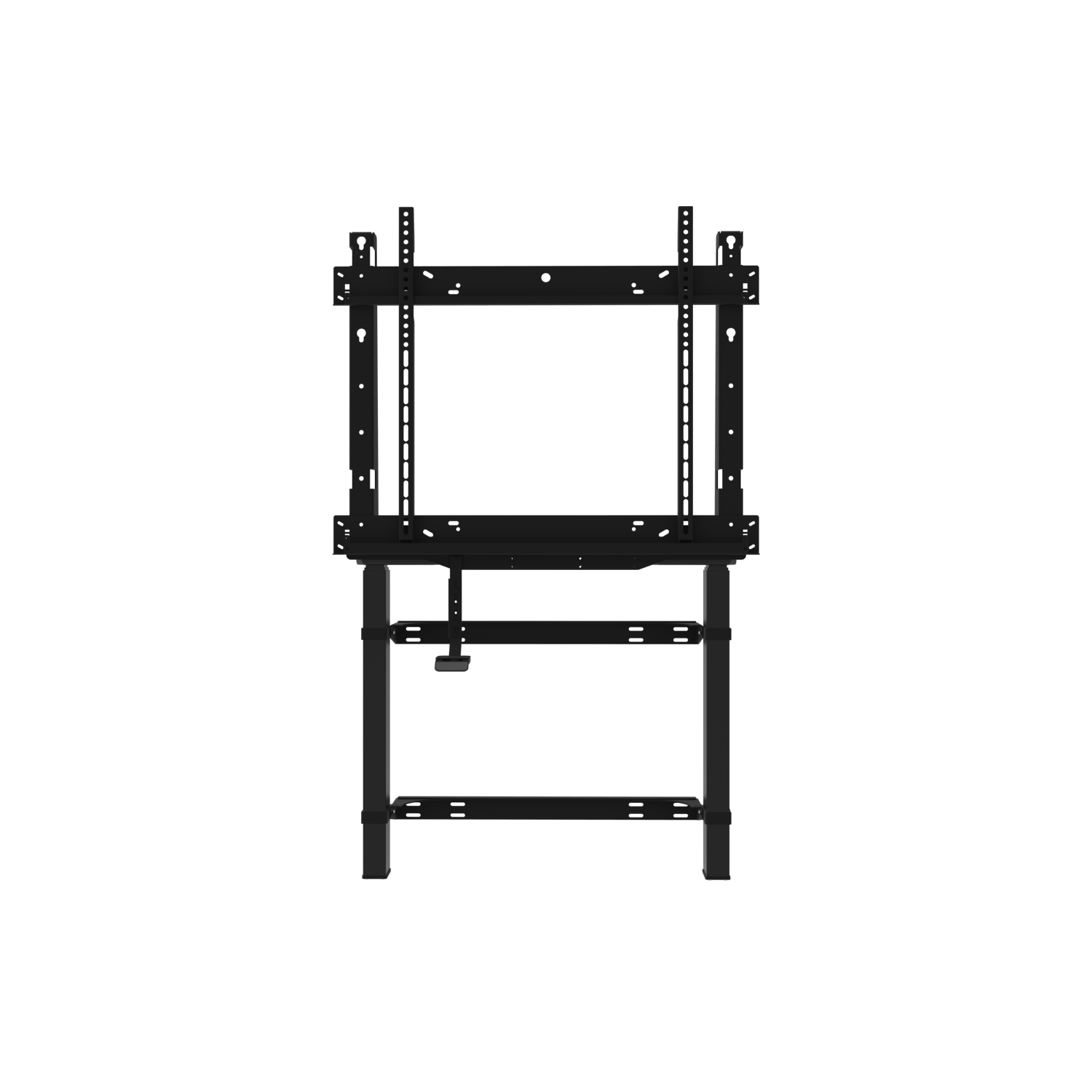

Hardware for compatible BalanceBox® and e-Box® products is included
Hardware for panel mounting included
Finish: powder coated black RAL9005 textured

NOTE: In case of combination with the Floor Support II for BalanceBox® 400, only use for fixed-height installations and ensure the total weight does not exceed the load capacity of 125 kg / 275 lbs.

Download datasheet

Details

Part No.	Description
481A53001	BalanceBox® Wide VESA Bracket 1200 x 800 mm

Measurements

Dimensions	Height	Width	Depth	Weight
Product dimensions	See technical drawing	See technical drawing	See technical drawing	+/- 10 kg
				+/- 22 lbs
Shipping dimensions	75 mm	945 mm	415 mm	+/- 10,5 kg
	2.95 inch	37.2 inch	16.3 inch	+/- 23.1 lbs
Pallet quantity: 40 EA	1385 mm	1200 mm	1000 mm	+/- 445 kg
	54.5 inch	47.5 inch	40 inch	+/- 979 lbs
