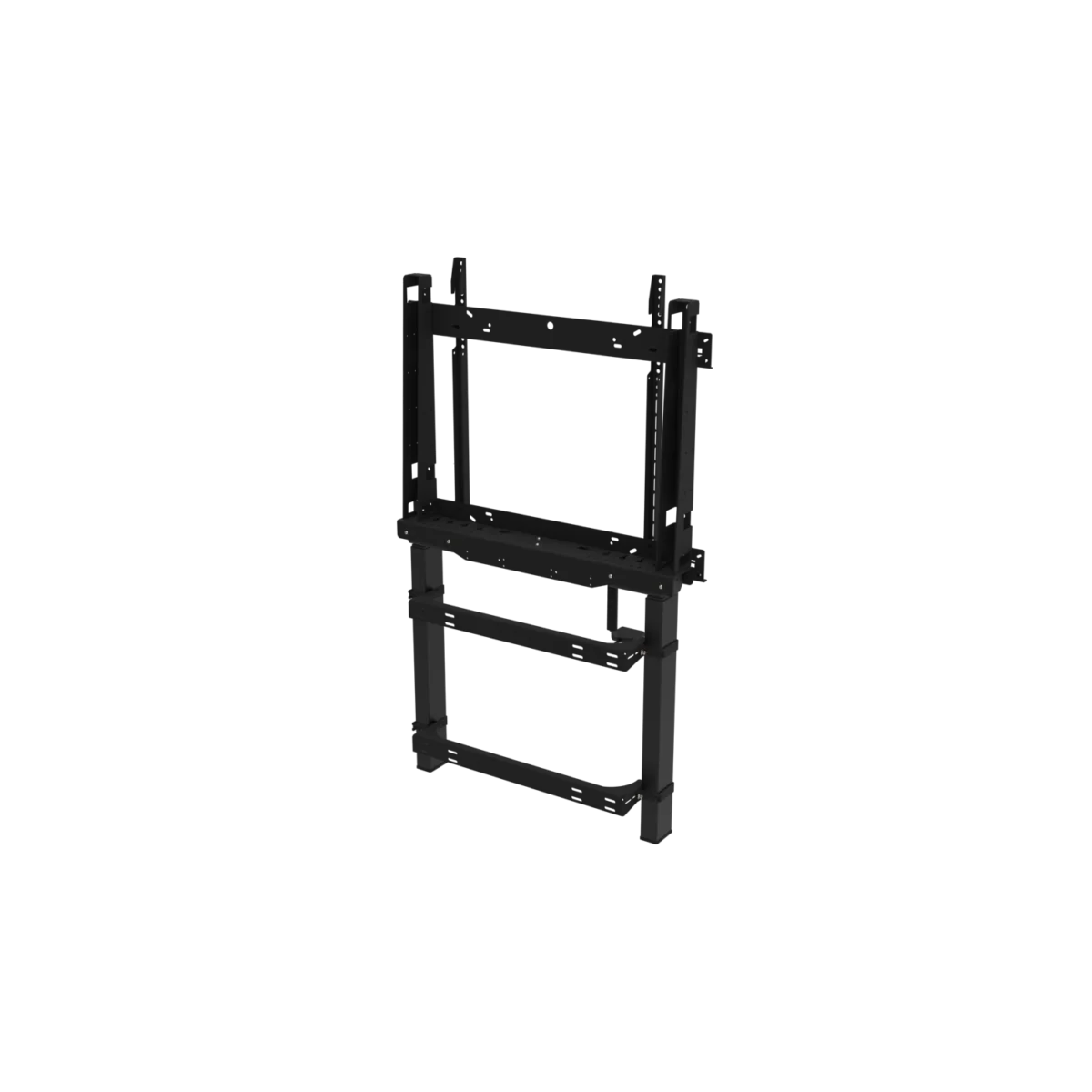

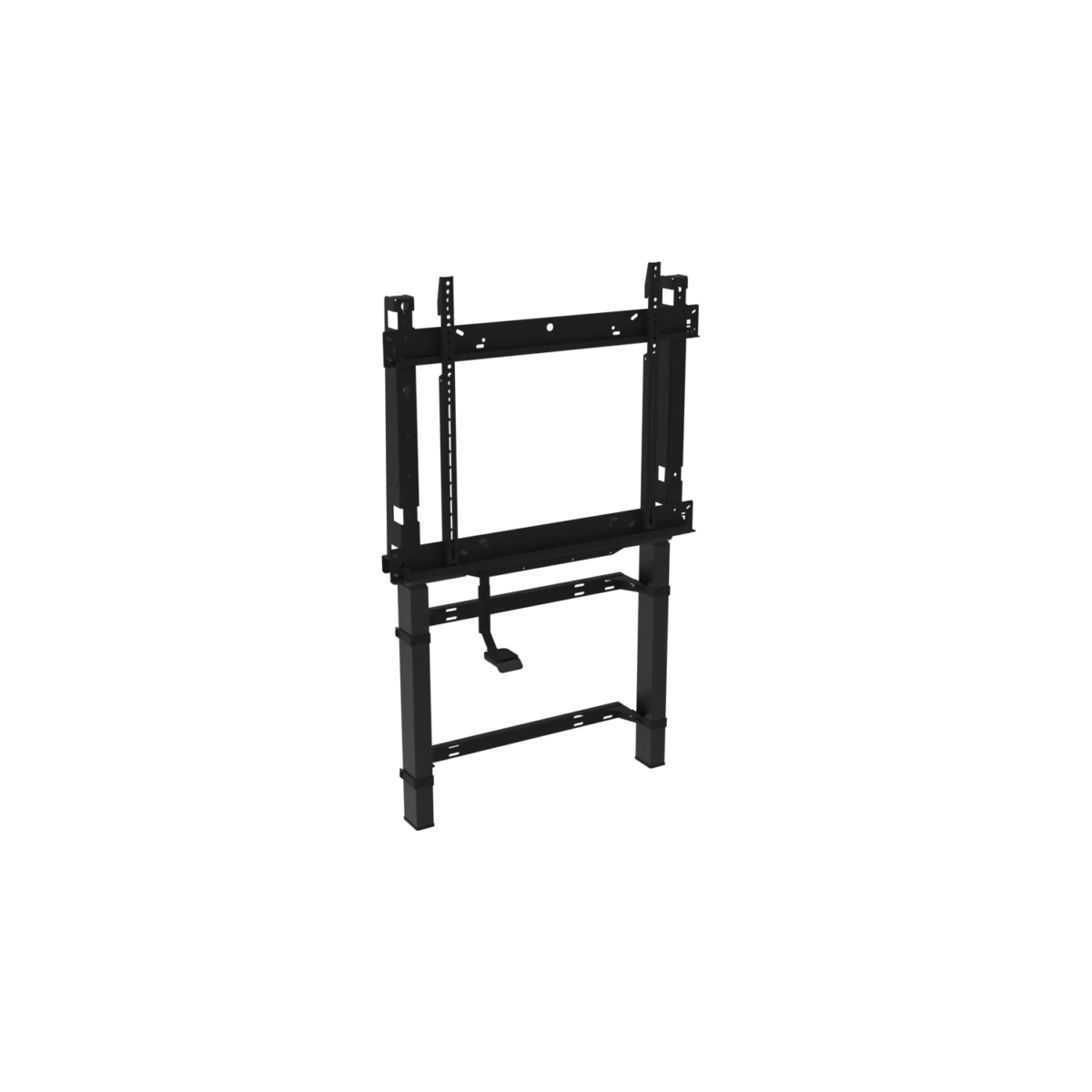

e·Box® IV Wall Mount
Motorized height-adjustable wall mount for interactive and large-format displays
The e·Box IV Wall Mount is a motorized, height-adjustable wall mount designed for interactive flat panels and professional AV applications. Built for fast installation, high stability, and scalable deployment, it features an extra-long 980 mm (38.6 in) vertical travel dual-column system that delivers smooth, precise movement. This makes it ideal for both single-room installations and large-scale, multi-room or multi-site roll-outs.
Stable performance for demanding display configurations
The wide-stance dual-column design ensures exceptional stability for standard, wide, and large-format displays up to 140 kg (308 lb), including interactive whiteboard setups. Smooth motorized height adjustment guarantees consistent, reliable performance, even with heavier display configurations.
Proven technology, designed to last
Built on proven lifting technology and tested to international safety standards, the e·Box IV is equipped with a dual anti-collision system to enhance user safety and protect the installation. Its durable, adaptable construction supports long service life and easy configuration, while maintaining consistency across AV projects in education, collaboration spaces, and corporate meeting rooms.
Support
Specifications
Accessories
Suitable for

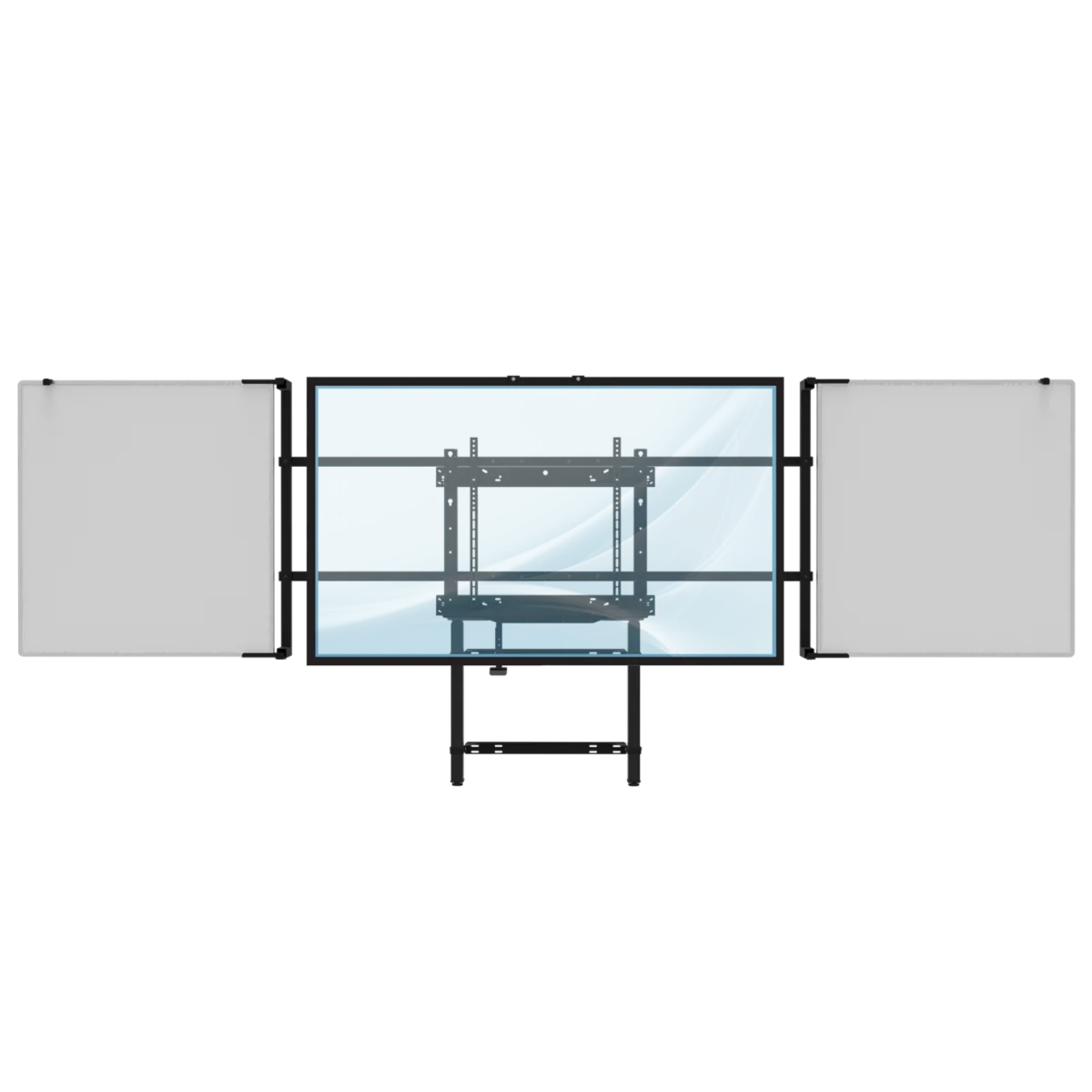

Winx 4b for e·Box®
Suitable for
- check_circleWinx 4b for e·Box®
Travel 980 mm (38.6 inch) at a speed of 50 mm/sec. (2"/sec.)
140 kg (308 lbs)
98" diagonal (in 16:9 format) 105" diagonal (in 21:9 format)
Dual anti-collision feature
CE and UL Certification (UL-EN-IEC 62368-1)
