BalanceBox® 650-II
Manual height adjustment for large displays
This is the BalanceBox 650-II, a manual height-adjustable mount for large and heavy interactive screens. With a 650 mm range, it ensures effortless screen accessibility and ergonomic comfort. No motors, no electricity — this is the most intuitive and fastest height adjustable solution on the market.
Mount it on a wall or pair it with a mobile stand for extra flexibility.
Support
Specifications
Accessories
Specifications
Material: steel frame, powder coated non-marking textured
Color: black RAL9005
ATTENTION: to choose the right BalanceBox, calculate the total weight of Display, VESA bracket and Accessories.
The BalanceBox 650-II moves DOWN 650 mm / 25.60 inch
Details
| Part No. | Description | Balancing Weight Range | Product Weight | Shipping weight |
|---|---|---|---|---|
| 484A17 | BalanceBox® 650-II Light | 34 - 68 kg (75 - 149.5 lbs) | 68,8 kg (151.4 lbs) | 73,8 kg (162.4 lbs) |
| 484A18 | BalanceBox® 650-II Medium | 67 - 127 kg (148 - 279 lbs) | 73 kg (160.6 lbs) | 78 kg (171.6 lbs) |
| 484A19 | BalanceBox® 650-II Heavy | 94 - 162 kg (207 - 356 lbs) | 74,5 kg (163.9 lbs) | 79,5 kg (174.9 lbs) |
Measurements
| Dimensions | Length | Width | Height | |
|---|---|---|---|---|
| Product Dimensions | 1067 mm | 924 mm | 161 mm | |
| 42 inch | 36.4 inch | 6.3 inch | ||
| Shipping Dimensions | 1170 mm | 960 mm | 200 mm | |
| 46.1 inch | 37.6 inch | 7.9 inch |
Suitable for
Mobile Stand for BalanceBox® 650

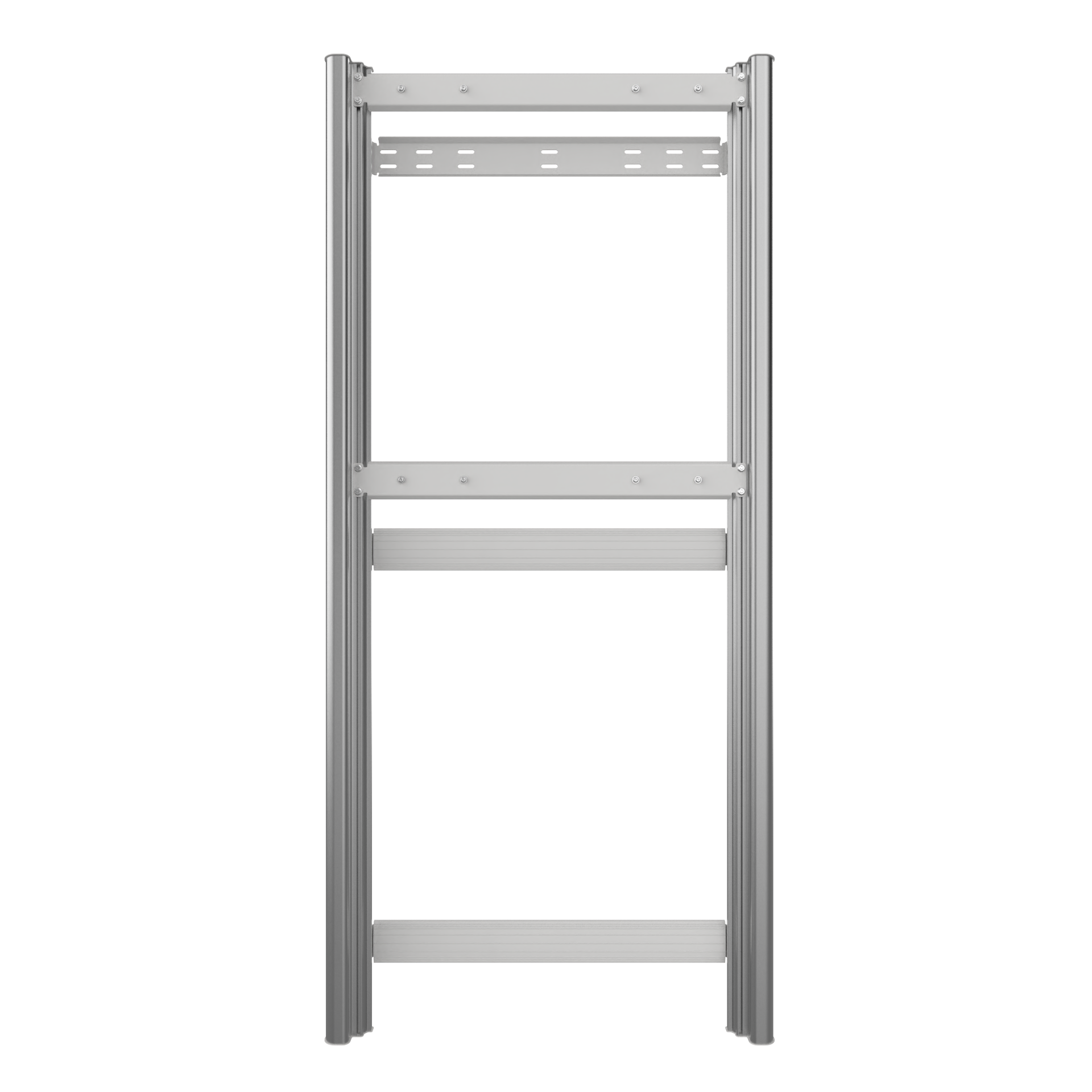

Floor Support II for BalanceBox® 650
Universal VESA Bracket
Universal Bracket for Soundbar mounting
Winx 4b for BalanceBox® 650
Winx 4b Fixed Whiteboard Expansion Set
Whiteboard Lock for Winx 4b
Conferencing Camera & Soundbar Bracket
Wide VESA Bracket up to 1200 x 800 mm
Suitable for
- check_circleMobile Stand for BalanceBox® 650
- check_circleFloor Support II for BalanceBox® 650
- check_circleUniversal VESA Bracket
- check_circleUniversal Bracket for Soundbar mounting
- check_circleWinx 4b for BalanceBox® 650
- check_circleWinx 4b Fixed Whiteboard Expansion Set
- check_circleWhiteboard Lock for Winx 4b
- check_circleConferencing Camera & Soundbar Bracket
- check_circleWide VESA Bracket up to 1200 x 800 mm
Smooth, fast and intuitive height adjustable mount for any screen
Compact packaging for efficient and durable transport
3 years
Innovative patented manual system which is hidden behind the screen
Tested up to 60.000 cycles, maintanance-free, TÜV (EN 62368) and CE certified
Super easy and quick installation
