DVLED650 F
DVLEDPANEL F
DVLED F
CE

CE

Accessory

Height Adjustable Wall mount for DVLED panels

The BalanceBox 650 Height adjustable DVLED wall solution will fit most LED panels between 130 and 136 in. The interface frame is adjustable in width and height; spacer sets and adapters are available for specific panel models.

Specifications

Material and Finish

Frame and handle-bars: Aluminium Black anodized
Brackets: Steel powder coated black RAL9005 textured

Download datasheet Download leaflet

Details

Ordering information
Art. No Description
484a19 BalanceBox 650-II Heavy for panel weight between 90 to 130 kg /198 to 286 lbs
484a19001 BalanceBox 650-II Heavy-plus for panel weight between 125 to 153 Kg / 275 to 336.5 lbs
484a20 BalanceBox 650-II Extra-Heavy-plus for panel weight between 140 to 185 Kg / 308 to 407 lbs
481B13 Set of interface brackets for DVLED frame on BalanceBox 650
481B12 Universal Interface frame for LED Panels up to 136 in.
481A14001 Floorsupport for BalanceBox 650 for non-structural walls
481B27 Spacer set (20pcs) 35 mm M8x60 DVLED

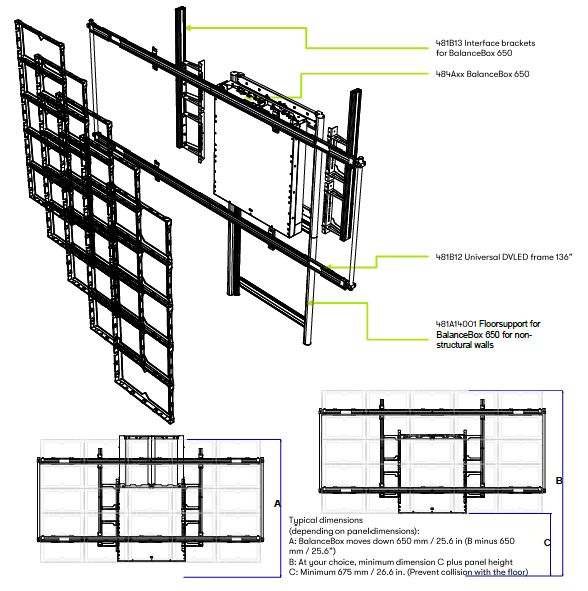

Measurements

Typical dimensions Travel
650mm (25.6inch)

Suitable for

BalanceBox® 650-II

Floor Support II for BalanceBox® 650

Suitable for

Get in touch
Good to know
Engineerd for large-format DVLED installations

Solution for indoor DVLED displays up to 136", including 5x5 arrays and All-in-One LED

High load capacity for demanding projects

Robust construction supports display weights up to 600 lbs

Adjustable frame for broad DVLED compatibility

Height- and width-adjustable frame fits most 130" - 136" DVLED brands

Manual height adjustability with the BalanceBox 650

Fastest and most intuitive height adjustmend for great ergonomics an accessibility

Instalation-friendly, stap-by-step setup

Modular design for faster alignment and reduced installation time

Safe and controlled operation

Large ergonomic handle for sage and controlled adjustment

The BalanceBox 650 Height adjustable DVLED wall solution will fit most LED panels between 130 and 136 in. The interface frame is adjustable in width and height; spacer sets and adapters are available for specific panel models. The mounting system can adjust to most All-in-One or cabinet based DVLED 5x5 panel arrays from 130” to appr. 136” depending on the brand. The system comes with large handle-bars on both sides of the panel for handling and height adjustment.

The BalanceBox® system is ideal for interactive touch functionality on large panels, touch all of the panel in a fraction of a second! Simply grab the handle-bars and move the panel. The BalanceBox® system is fully certified and tested for safety.
