BalanceBox 400 Height Adjustable Manual Mount - up and down position

Balance Box 400 Wall Mounted with VESA and screen height adjustable

BalanceBox 400 Height Adjustable Manual Mount - with Winx 4b solution - Scenario Education

BalanceBox® 400

Manual height adjustable mount

This is the BalanceBox 400, a manual height-adjustable wall mount designed for interactive screens. Effortlessly move your screen up or down with just a fingertip, ensuring ergonomic comfort and intuitive use. No motors, no electricity — this is the most intuitive and fastest height adjustable solution on the market.

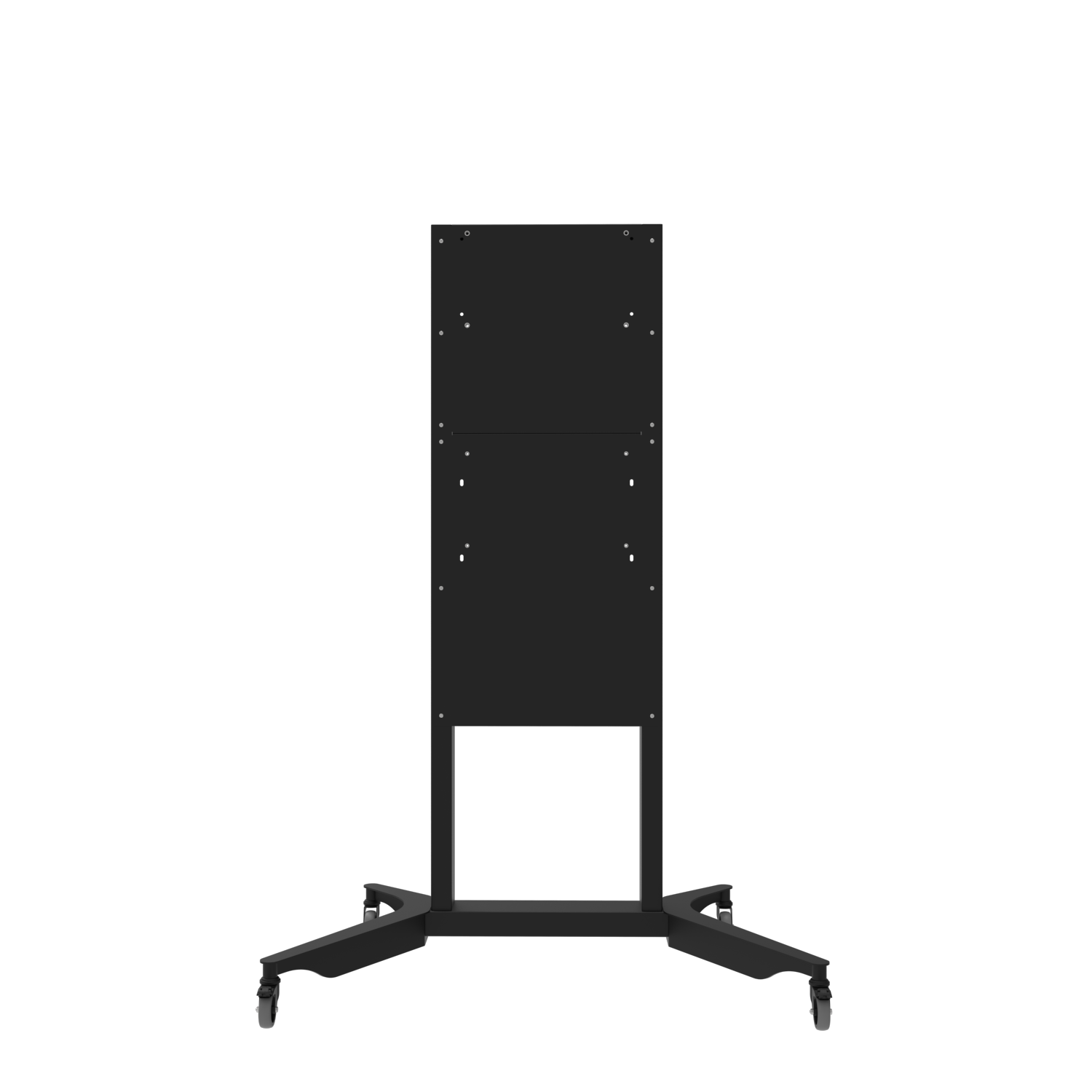

Mount it on a wall or combine it with our Mobile Stand Mix for extra flexibility and mobility.

Specifications

Material: steel frame, powder coated non-marking textured, cover black textured ABS UL94-HB.
Colour: black RAL9005

ATTENTION: to choose the right BalanceBox, calculate the total weight of Display, VESA bracket and Accessories.

The BalanceBox 400 moves DOWN 400 mm / 15.75 inch

Download datasheet

Details

Part No.	Description	Balancing Weight Range	Screen size
480A13	BalanceBox® 400 Light	23 - 43 kg (50.7 - 94.7 lbs)	42" - 86"
480A12	BalanceBox® 400 Medium	41 - 69 kg (90.4 - 152 lbs)	42" - 86"
480A14	BalanceBox® 400 Heavy	66 - 95 kg (145.5 - 209 lbs)	42" - 86"

Measurements

Weight & Dimensions	Width	Height	Depth	Weight
Shipping dimensions	620 mm	670 mm	95 mm	23,9 kg
	24.4 inch	26.4 inch	3.75 inch	52.7 lbs
Product dimensions	556 mm	592 mm	81 mm	22,3 kg
	21.9 inch	23.3 inch	3.2 inch	49.1 lbs
Pallet quantity: 12 EA	1160 mm	720 mm	670 mm	287 kg
	45.7 inch	28.3 inch	26.4 inch	632 lbs
